Q235 High Strength Tubular Steel Roof Truss Square Aluminum Truss Punching

High Strength Space Frame Steel Structure for Gym

Description

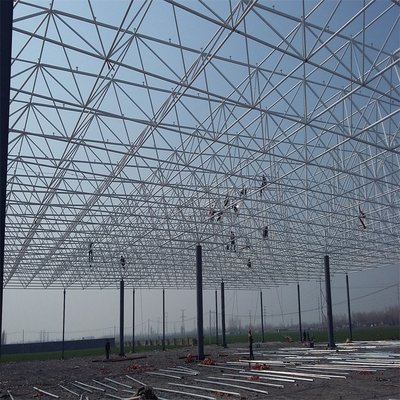

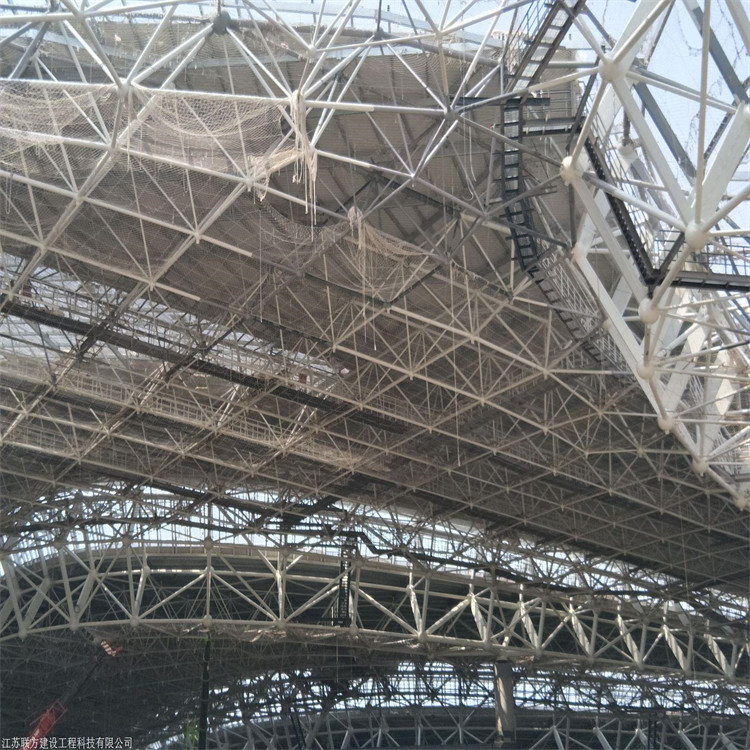

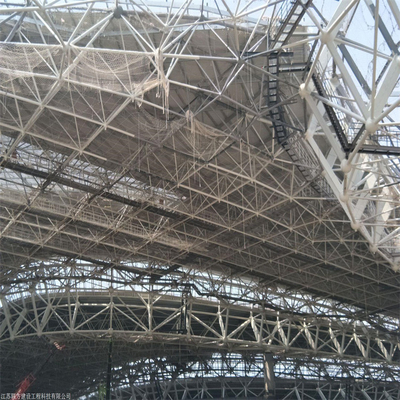

The simplest form of space frame is a horizontal slab of interlocking square pyramids and tetrahedra built from aluminium or tubular steel struts. In many ways this looks like the horizontal jib of a tower crane repeated many times to make it wider. A stronger form is composed of interlocking tetrahedra in which all the struts have unit length. More technically this is referred to as an isotropic vector matrix or in a single unit width an octet truss. More complex variations change the lengths of the struts to curve the overall structure or may incorporate other geometrical shapes.

Feature

Space frames are typically designed using a rigidity matrix. The special characteristic of the stiffness matrix in an architectural space frame is the independence of the angular factors. If the joints are sufficiently rigid, the angular deflections can be neglected, simplifying the calculations.

Applications

• Industrial buildings, factories
• Sports halls
• Warehouses
• Swimming pools
• Conference halls and exhibition centers
• Stadiums with long span distance
• Museum and fair houses
• Shopping centers and malls
• Airports and canopy
• Atrium

Overview

Why the space frame structure stand out?

The flexibility and rigidity of space frame structure are immensely growing and in coming days will soon captivate the markets. Its aesthetics and design outlook makes it a worthy option. Apart from the pointers discussed above, in a series of upcoming article we will discuss on several other specifications and advantages of a Space Frame Structure.
