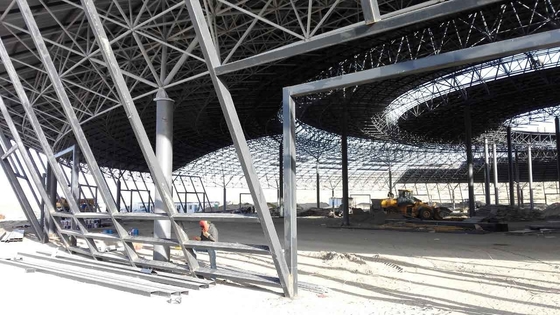

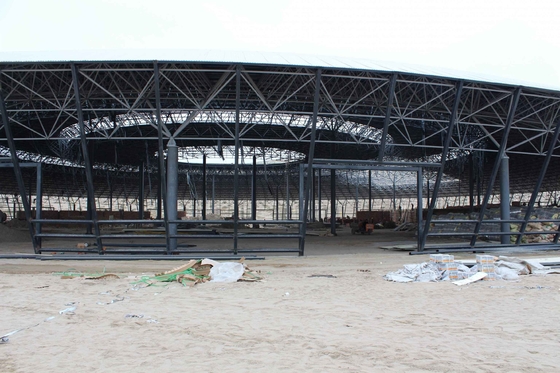

Space Frame Coal Storage Outreach Roof in Steel Structure Construction

Space Frame Coal Storage Outreach Roof in Steel Structure Construction​

1. Large Span Coverage

   • Space frames can span 100m or more without intermediate supports, providing unobstructed storage space.

   • Ideal for coal stockyards, reducing the need for multiple columns.

2. Lightweight & High Strength

   • Uses triangular or pyramidal steel units for optimal load distribution.

   • High strength-to-weight ratio reduces foundation costs.

3. Durability & Corrosion Resistance

   • Steel members are galvanized or coated to resist corrosion from coal dust and moisture.

   • Long service life with minimal maintenance.

The space frame structure is a kind of space bar structure, the force bar is connected by the node according to a certain law. The joints are generally designed to be hinged, and the rod is mainly subjected to axial force, and the cross-section size of the rod is relatively small.These spatial confluence of the bar and support each other, the bearing bar and support system organically combined, so the material economy. Due to the regular structure combination, a large number of rods and nodes have the same shape and size, which is convenient for factory production and easy to install on site.
