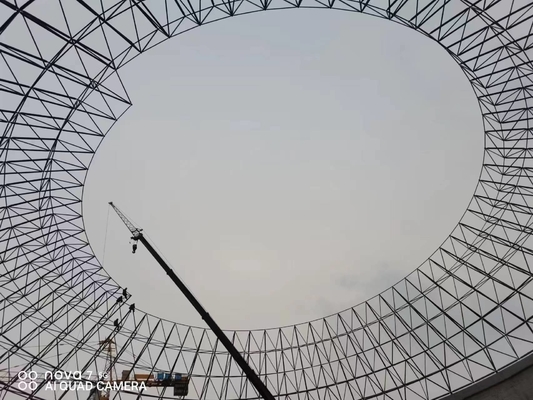

Prefabricated Design for Q345 S355JR / Q235 S235JR Steel Space Frame Construction
Compared with the traditional plane structure, the space grid structure has the following six advantages:
1,Because of the interaction between the rods of the frame structure, it makes its integrality good, spatial rigidity large, and the structure is very stable.
2,Frame structure rely on the axial force of the rod to transfer the load, the material strength is fully utilized, not only save steel, but also reduce the weight. A good net frame design, its steel consumption is close to the steel content of reinforced concrete structure under the same conditions, so that a large amount of concrete can be eliminated, which can reduce self-weight by 70-80%, and save steel by 20-50% compared with ordinary steel structure.
3,Good seismic performance. Due to the light self-weight of the net frame structure, the seismic force generated by the earthquake is small, while the steel has good extensibility, which can absorb a large amount of seismic energy, the net frame has large spatial rigidity, the structure is stable and won't collapse, so it has excellent anti-seismic performance.
4, The height of the frame structure is small. It can effectively utilize the space, the height-to-span ratio of common steel structure is 1/8-1/10, while the height-to-span ratio of net frame structure is only 1/14-1/20, which can reduce the height of the building.
5,Construction speed. The size and shape of the components of the net frame structure are the same in a large number, which can be produced in batches in the factory with good quality and high efficiency, and at the same time, it does not compete with the civil construction for the site, thus the workload on site is small, and the construction period is shortened.
6,Net frame structure is lightweight. It can cover various shapes of plane, and can be designed into various body shapes with beautiful and generous modeling.
| Brand name |
space frame coal storage shed yard in steel structure construction |
| Model |
1.Single slope, Double slope, Multi-slope. |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. |
| Column and beam |
1.Material Q345(S355JR)or Q235(S235JR) steel. |
| 2.All bolts connecting. |
| 3.Straight cross-section or Variable cross-section. |
| Fabrication |
Advanced Automatic Welding Machines |
| Quality |
control GB/T19001-2000----ISO9001:2000 |
| Surface |
Hot-dip galvanized or painted |
| Roof and wall panel |
1.EPS ,PU ,Rockwool sandwich panel. |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). |
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. |
| Carrying capacity |
1.Resisting winds and seismic impacts. |
| 2.Bearing heavy snows. |
| Drawing |
1.Making the design and quotation according to your requirements very soon. |
| 2.Making the quotation according to your drawings. |
| 3.Giving you the satisfying opinion to your project. |
Herbert (Suzhou) International Trade Co., Ltd., located in the West of the Lake CBD of Suzhou Industrial Park,is a new international trade Internet Sales Service Company, which is based on the steel structure products designed by Jiangsu Andy Steel Structure Co. Ltd. The company is specialized in international trade and sales services of space frame, steel structure, curtain wall, membrane structure, etc., The products areused in various infrastructure and housing construction industries. The company has a comprehensive R&D, design, sales, and technical engineering service team, and has obtained construction qualification certificates and foreign trade registration record. At present, the company mainly promotes products and service information to overseas customers through Alibaba International Trade Station and Google Promotion Station. Our vision is that as long as there is a building, it is our business.
feature
Standard: GB,
Tolerance:±1% ,
Processing Service:Bending, Welding, Decoiling, Cutting, Punching,
Space frame:large span strong durability ,
Design Style:Modern,
Usage:Steel building frame
1. Who we are?
We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality.
2.Factory or trade company?
We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year.
3. Quality assurance and guarantee?
Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc.
If there is one quality problems in one project.5%contract amount will be returned
4. Do you offer quiding installation on site overseas?
Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
