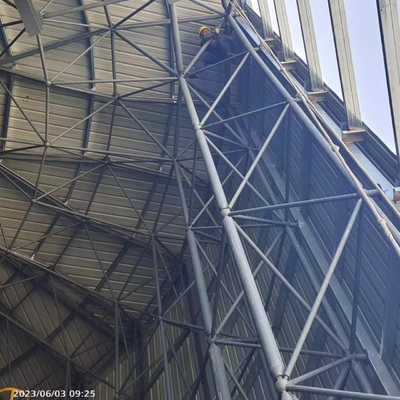

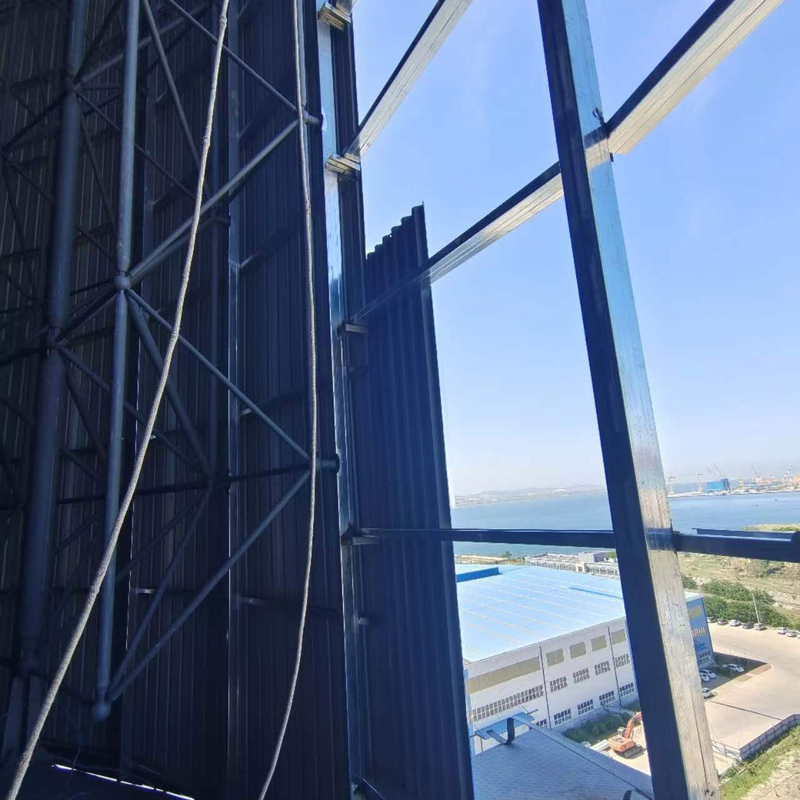

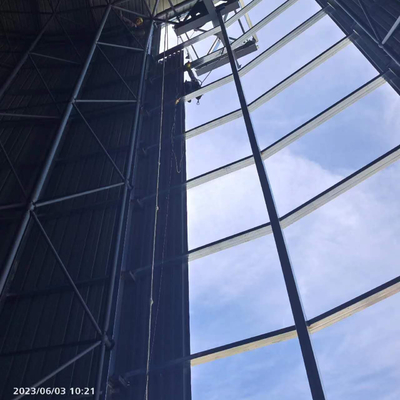

Q235 Light Steel Frame Prefabricated For Shed Building Structure

Q235 Light Steel Frame Prefabricated For Shed Building Structure
Q235 Light Steel Frame Prefabricated For Shed Building Structure
Q235 Light Steel Frame Prefabricated For Shed Building Structure Q235 Light Steel Frame Prefabricated For Shed Building Structure Q235 Light Steel Frame Prefabricated For Shed Building Structure Q235 Light Steel Frame Prefabricated For Shed Building Structure

Large Image :  Q235 Light Steel Frame Prefabricated For Shed Building Structure

Product Details:
Place of Origin: Jiangsu
Brand Name: Jiangsu Herbert steel structure
Certification: SGS / CE
Model Number: Q235
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square Meters
Price: negotiation
Packaging Details: 40ft
Delivery Time: 21-30 Days
Payment Terms: T/T
Supply Ability: 100 Ton/days
Contact Now

Q235 Light Steel Frame Prefabricated For Shed Building Structure

Description
Product: Steel Space Frame Hangar Material: Q235
Color: Customized Packaged: Wood Package
Life: 50-70 Years Roof: Aluminum
Name: Steel Space Frame Feature: Large Space
Application: Space Frame Coal Shed
Highlight:

Coal Shed Prefabricated Steel Space Frames

,

Q235 Light Steel Frame Building

,

Shed Prefabricated Light Steel Frame

Prefabricated Light Steel Frame Building Structure For shed building



1. steel structure building

2. Bulk storage items

3. Large span for storage



The grid structure is a higher order statically indeterminate structure system. In the analysis of plate-type grid, it is generally assumed that the joints are hinged, and the external load is applied to the joints according to the principle of static equivalent, which can be calculated according to the displacement method of space truss, that is, the finite element method of hinged rod system.



Brand name space frame coal storage shed yard in steel structure construction
Model 1.Single slope, Double slope, Multi-slope.
2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam 1.Material Q345(S355JR)or Q235(S235JR) steel.
2.All bolts connecting.
3.Straight cross-section or Variable cross-section.
Fabrication Advanced Automatic Welding Machines
Quality control GB/T19001-2000----ISO9001:2000
Surface Hot-dip galvanized or painted
Roof and wall panel 1.EPS ,PU ,Rockwool sandwich panel.
2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
Carrying capacity 1.Resisting winds and seismic impacts.
2.Bearing heavy snows.
Drawing 1.Making the design and quotation according to your requirements very soon.
2.Making the quotation according to your drawings.
3.Giving you the satisfying opinion to your project.

Q235 Light Steel Frame Prefabricated For Shed Building Structure 0Q235 Light Steel Frame Prefabricated For Shed Building Structure 1Q235 Light Steel Frame Prefabricated For Shed Building Structure 2

Q235 Light Steel Frame Prefabricated For Shed Building Structure 3


Q235 Light Steel Frame Prefabricated For Shed Building Structure 4

1. Who we are?
We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality.
2.Factory or trade company?
We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year.
3. Quality assurance and guarantee?
Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc.
If there is one quality problems in one project.5%contract amount will be returned
4. Do you offer quiding installation on site overseas?
Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas.
