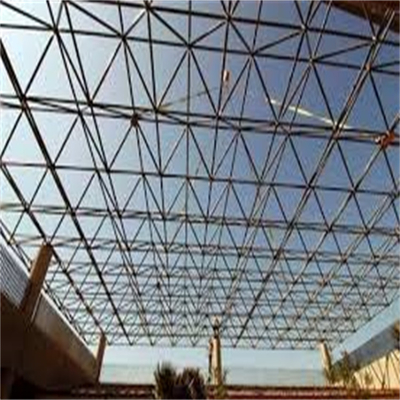

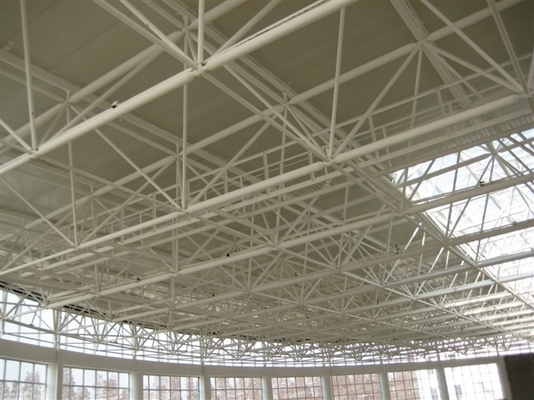

Product Details:
|
| Product: | Steel Space Frame Roof Structure | Material: | Q235 |
|---|---|---|---|
| Color: | Customized | Packaged: | Wood Package |
| Life: | 50-70 Years | Large Span: | 100-300 Meters |
| Application: | Structural Roofing | Processing Service: | Bending,Welding,decoiling,cutting,punching |
| Purlin: | C.Z Shape Steel Channel | Tolerance: | ±1% |
| High Light: | M6 Space Frame Node,Q235 Space Frame Node,Space Frame Bolt Ball Big Head |
||
Bolt m6 Big Head Bolt Space Frame Node Bolt Ball
Description
Hollow ball joints and bolted ball joints are suitable for the grid structure of steel pipe members. The nodes of the single-layer shell grid should be able to withstand the bending internal force. Generally, the steel consumption of the nodes accounts for 15-20% of the steel consumption of the entire steel grid structure.
Feature
The construction and installation methods of the grid structure are divided into two categories: one is the overall jacking method, the overall lifting method and the overall hoisting method assembled on the ground; slip-in-place assembly and other methods.
overview
| Brand name | space frame coal storage shed yard in steel structure construction | |
| Model | 1.Single slope, Double slope, Multi-slope. | |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | ||
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. | |
| 2.All bolts connecting. | ||
| 3.Straight cross-section or Variable cross-section. | ||
| Fabrication | Advanced Automatic Welding Machines | |
| Quality | control GB/T19001-2000----ISO9001:2000 | |
| Surface | Hot-dip galvanized or painted | |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. | |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | ||
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | ||
| Carrying capacity | 1.Resisting winds and seismic impacts. | |
| 2.Bearing heavy snows. | ||
| Drawing | 1.Making the design and quotation according to your requirements very soon. | |
| 2.Making the quotation according to your drawings. | ||
| 3.Giving you the satisfying opinion to your project. | ||
Why the space frame structure stand out?
The flexibility and rigidity of space frame structure are immensely growing and in coming days will soon captivate the markets. Its aesthetics and design outlook makes it a worthy option. Apart from the pointers discussed above, in a series of upcoming article we will discuss on several other specifications and advantages of a Space Frame Structure.
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
